Electric Drives / VFDs and Soft Starters: A Practitioner's View
A ~US$23bn category hides five different businesses. Commodity LV hardware is a scale-and-price game. High-performance LV is increasingly software and power-density driven. MV is an engineered project and installed-base business. Soft starters defend fixed-speed applications. And the longest-duration pool is the service tail attached to the installed base. The rest of this primer builds that map from the hardware up.
- ~US$23bn addressable pool, compounding at about 5% a year. Low-voltage AC drives are ~US$16.5bn (about 71% of the pool), MV drives ~US$4.5bn and soft starters ~US$2.4bn (2025, triangulated from multiple analyst ranges). Growth is steady; the category has never delivered a spectacular year, and energy-efficiency regulation, electrification of process heat, and data-centre / water / mining capex do most of the work.
- LV drives are a scale game that China is winning at home. Inovance is #1 in China LV drives at close to a fifth of the domestic market, and INVT is the #2 domestic brand. ABB, Siemens, Danfoss and Rockwell still hold Europe and North America, where Chinese share stays in low single digits despite years of export push.
- MV drives are a concentrated project-sold business. ABB, Siemens, TMEIC, GE Vernova, Rockwell and the Chinese locals share almost the entire market. China MV localisation reached ~56% in 2024 (INVT 2025 annual report; MIR consistent). The engineered service tail is a bigger profit pool than the drive hardware itself.
- Soft starters are a slow-growing specialist niche worth ~US$2.4bn. The category compounds at about 5% and is defended by application depth, MV listings and short lead times. Falling VFD prices continue to pull LV soft starters into applications with speed-control payback; fixed-speed MV starting stays firmly the incumbent's.
- The five-year competitive move is Chinese vendors going export at the mid-market. Inovance's Stuttgart R&D centre and Hungary plant, and INVT's Middle East and South Asia distribution build-out, put price pressure on the majors' mid-range LV and low-end MV drives. Chinese displacement is substantially further advanced in catalogue LV than in engineered MV systems, where reference base, project execution and service coverage remain larger barriers.
- Wide-bandgap, cybersecurity compliance and digital services are re-drawing the moats. Silicon carbide in compact LV drives, IEC 62443 secure-development lifecycles and the EU Cyber Resilience Act (full obligations Dec 2027), and cloud condition-monitoring / commissioning software have all become fixed costs that a small vendor cannot amortise, and the consolidation cycle across the mid-market specialist ranks continues to run.
- The market looks like one US$23bn category; economically it is five different businesses. Commodity LV hardware, high-performance / integrated LV, MV engineered systems, soft starters, and the installed-base / service pool. Each has different competitive dynamics, different capital cycles and different winners. The most valuable and least tradeable pool is installed-base management, which no share table captures. Full framework in Section 13.
01 The category, and the taxonomy
The industrial motor-control category has two functional product families. A drive (also called a VFD or AC drive) controls motor speed and torque continuously. A soft starter controls only the start and stop, not the running speed. Drives split by voltage class into LV (≤690 V) and MV (2.3 to 13.8 kV); soft starters are sold in both voltage classes as well. This piece treats LV drives, MV drives and soft starters as the product categories in the market, with LV and MV as voltage classes of the drive family, not as separate peer categories. Terminology in the rest of the piece: drive and VFD are used interchangeably; LV drive and MV drive specify the voltage class; soft starter stays distinct.
The product categories all connect the electrical supply to an AC induction or permanent-magnet motor. Motors consume around 40 to 45% of global electricity consumption per IEA 4E estimates, and most still run direct-on-line (DOL) at fixed speed. Drives and soft starters are how a facility takes control of that fleet, whether to save energy on variable-duty loads, protect equipment on start-stop cycles, or synchronise a large motor to the grid without a shock to either.
Variable-frequency drive (VFD / AC drive)
Rectifies the mains supply to DC, then uses IGBT (or increasingly silicon-carbide) switches to synthesise a variable-frequency, variable-voltage output. It controls speed and torque continuously. On an ideal centrifugal pump or fan operating under the affinity laws (P proportional to N³), a 20% speed reduction cuts shaft power by about half; real systems achieve less depending on the system curve, static head, controls and operating point. Typical full-load drive losses are on the order of 2 to 3%, with actual losses varying by rating, topology, switching frequency and operating point. Harmonic injection back into the grid is the price of admission; active front ends (AFE) or multi-pulse rectifier inputs are the fix.
Soft starter
Three pairs of anti-parallel thyristors (SCRs) ramp the motor voltage during start and stop. Inrush current comes down from six to eight times full-load current to two to four times, cutting mechanical shock and water hammer. After the ramp, an internal bypass contactor closes and takes the SCRs out of the steady-state current path, so the starter adds little harmonic distortion during normal running and the running efficiency approaches 99.5%. The device has no speed control. Typical price is 30 to 50% of an equivalent VFD, and the footprint is smaller.
Low-voltage AC drives (LV, ≤ 690 V, up to ~1 kV AC)
Ratings run from 0.2 kW micro drives up to multi-MW cabinet units. Sold through distributors, OEM machine builders and panel builders. This is a high-volume catalogue business where cost, channel reach and feature parity decide the winner; footprint matters only in retrofits. Feature checkbox parity matters more than pure innovation.
Medium-voltage AC drives (MV, 2.3 to 13.8 kV, up to 100+ MW)
Used on large pumps, compressors, ID fans, conveyors, mills and marine propulsion. Common topologies are cascaded H-bridge (CHB, the topology used by most Chinese vendors and second-line challengers), neutral-point clamped (NPC / ANPC, ABB ACS 5000 / 6000 family, Siemens SM120), and load-commutated inverters (LCI) for very large synchronous machines. An engineered, project-sold business with a long service tail that can be more profitable than the drive itself.
| Dimension | LV VFD | MV VFD | Soft starter (LV / MV) |
|---|---|---|---|
| Core function | Speed and torque control | Speed and torque control; soft start of very large motors | Controlled start and stop only |
| Power semiconductors | IGBT modules; SiC emerging | IGBT power cells (CHB) or IGCT / HV-IGBT (NPC) | SCR / thyristor stacks + bypass |
| Indicative price | US$40 to 150 per kW (falls with size) | US$70 to 200 per kW plus engineering | Roughly 30 to 50% of a VFD at the same rating |
| Energy saving | 20 to 50% on variable-torque loads | Same logic, at MW scale | None directly (reduces demand peaks) |
| Typical loads | HVAC fans and pumps, conveyors, machines, compressors | Pipeline pumps, ID fans, mills, compressors, mine hoists | Fixed-speed pumps, crushers, compressors, chillers, irrigation |
| Route to market | Distribution, OEM, panel builders | EPCs (engineering, procurement, construction firms), end users, projects | Distribution, MCC (motor control centre) builders, OEM (original equipment manufacturer); MV by project |
| Key standards | IEC / EN 61800-3 / -5-1, UL 61800-5-1, EU Ecodesign IE2 (2019/1781) | IEC 61800-4, IEEE 519, UL 347A | IEC 60947-4-2, UL 60947-4-2, UL 347 (MV) |
Substitution dynamic. Falling VFD prices push soft starters out of applications where continuous speed control has a payback. Soft starters keep fixed-speed duties where efficiency, very low starter-induced harmonics during bypass, size and price matter, and they dominate MV fixed-speed starting. Hybrid "start drives" (one VFD ramps several motors in sequence, then hands each to the grid on a synchronised transfer) blur the line further.
Two features hold across all four curves. First, $/kW falls with size for every product because power semiconductors, cabinets and control electronics scale sub-linearly with rating. Second, the MV curves run about 40 to 60% above the LV curves at any given rating because MV drives add a phase-shifting transformer, HV isolation, engineered cabinets and factory-test overhead that LV drives do not need.
Equipment-only $/kW compares drive or starter hardware pricing at like ratings. Ranges reflect the low end (large ratings, catalogue orders, competitive tenders) to the high end (small ratings, engineered variants, low-volume specialist products). Soft starters run a third to a half of a like-rated VFD; MV products sell at a 40 to 70% premium over LV at the same rating.
Full-system $/kW adds balance-of-plant, engineering and installation on top of the equipment stack. MV VFDs see the largest system uplift because the phase-shifting transformer, harmonic filter, cabling, engineering and factory testing together add more than the drive itself. LV VFDs about double from equipment to system on typical HVAC and pumping installs. Soft starters show the smallest equipment-to-system gap because there is no separate transformer or filter to add.
Installing a VFD onto an existing DOL-rated motor introduces three physical effects that catalogue $/kW does not price: high dv/dt at switching frequencies of 2 to 8 kHz causes voltage reflection on the motor terminals over long cable runs (typically above 30 m), which stresses winding insulation; common-mode capacitive currents through the shaft cause electric discharge machining (bearing fluting); and the motor may not meet inverter-duty insulation ratings (NEMA MG1 Part 31 or IEC 60034-25). Peak terminal voltage can reach roughly twice the DC-bus voltage (around 1,300 V on a 480 V system) once cable length exceeds the critical range of 30 to 50 m, shorter under SiC's faster dv/dt.
Retrofit balance-of-plant. Mitigations include an output reactor or dv/dt filter (5 to 10% adder on the drive capex), a sine-wave filter for the most sensitive cases (10 to 15% adder), a shaft-grounding ring (AEGIS or equivalent, small) to break the common-mode current loop, and where necessary a re-insulated or replaced motor with insulated non-drive-end (NDE) or ceramic-hybrid bearings.
Cumulative retrofit adder above the catalogue $/kW: 10 to 25% depending on cable length, motor age and duty. The greenfield installation avoids most of it by specifying inverter-duty motors from the outset. Retrofit projects belong on a distinct line item in the model, not the greenfield $/kW band.
The three-stage picture is the canonical architecture for conventional voltage-source AC drives. What changes with voltage class is the internal implementation: an LV drive uses a single rectifier bridge feeding a DC link into a single IGBT bridge (drawn above). A CHB medium-voltage drive stacks many of these small rectifier-plus-bridge cells in series per phase and feeds each from its own transformer secondary; that is what Exhibit 2 on the next page shows. The same three-stage block diagram applies from a 5 kW LV cabinet to a 25 MW MV plant; MV drives just stack more of the same cells.
1.1 Inside a medium-voltage drive

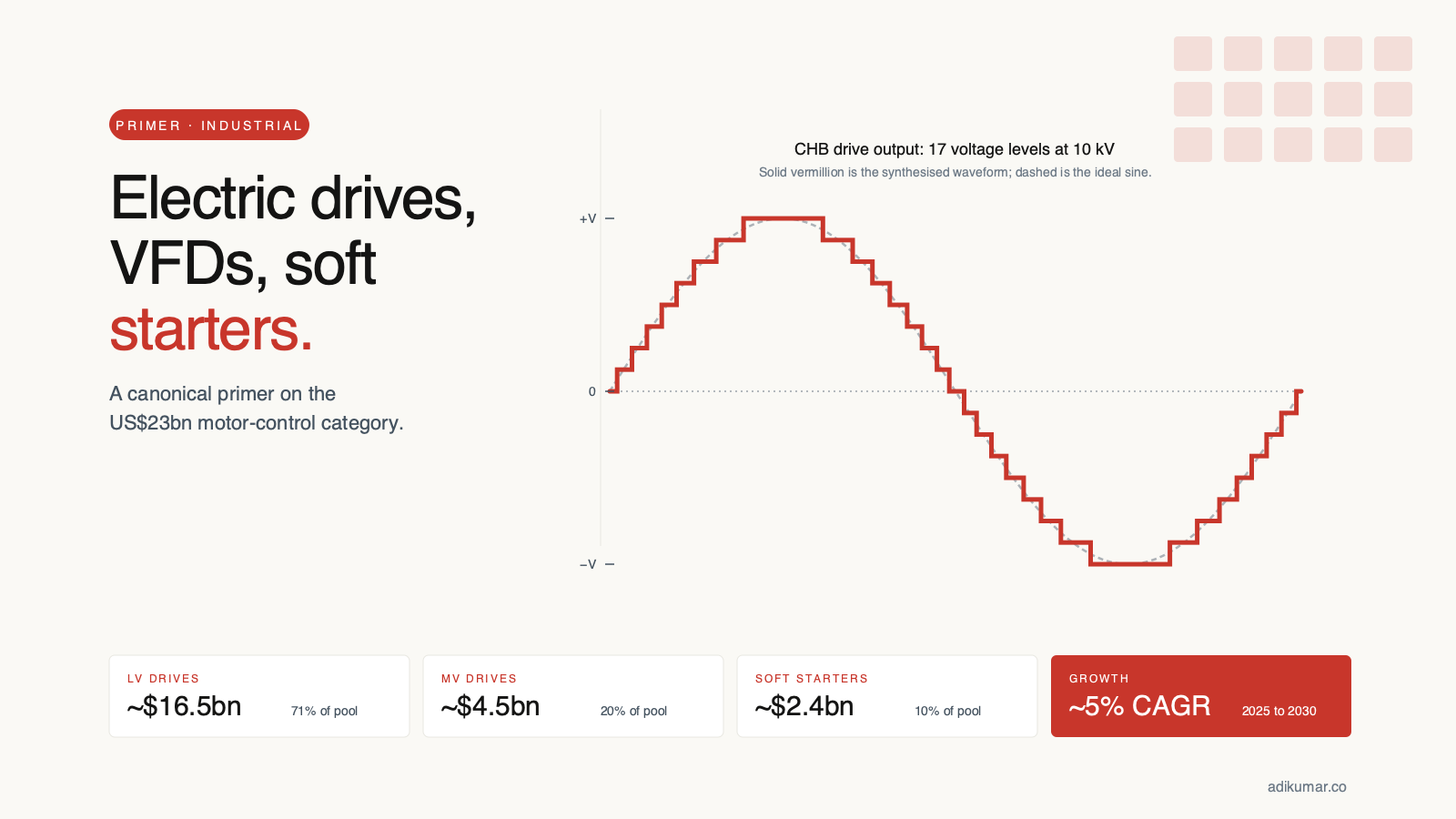

The cascaded H-bridge (CHB) topology holds a large portion of the general-purpose MV drive market, particularly in the 3.3 to 11 kV range where standard motors and long cables are common. Neutral-point clamped (NPC and ANPC), modular multi-level (MMC), current-source (CSI) and load-commutated (LCI) architectures share the rest of the market, sized to specific application niches. This section focuses on CHB because it is the most-shipped topology and because its three-block anatomy (phase-shifting transformer, stack of power cells, control unit) sets up the value-split discussion that follows. A CHB drive can be decomposed into three functional blocks.
Phase-shifting (multi-winding) transformer
Steps the 6 to 11 kV supply down to many ~690 to 750 V secondaries, one per cell (3N in total), each galvanically isolated and phase-shifted (for example 0°, ±20° for three cells per phase). The shifts cancel the rectifier harmonics: pulse number = 6 × cells per phase, so an 8-cell 10 kV drive is 48-pulse. Input current stays near-sinusoidal (THDi typically below 3 to 5%) and power factor above 0.95 without filters, hitting IEEE 519 out of the box. The transformer also isolates the motor from the grid and dampens common-mode voltage.
Winding design and losses (~1 to 1.5 percentage points of drive losses come from this block), dry-type versus oil-cooled, footprint and weight. Frequently bought from specialist transformer makers, and lead times often determine the delivery schedule for the whole drive.
Power cells (series-connected)
Each cell is a small LV drive: a three-phase diode rectifier charges a DC-link capacitor bank; an H-bridge of four 1,700 V class IGBTs outputs +VDC, 0 or −VDC. Stacking N cells per phase gives 2N+1 voltage levels per phase. Phase-shifted PWM carriers across cells multiply the effective switching frequency by 2N, so the output is near-sinusoidal with low dv/dt. The stepped CHB waveform substantially reduces dv/dt versus conventional two-level PWM, so output filtering remains optional even with long cables and standard motors. Cells are identical, slide-in modules; repairs take minutes.
Cell ratings and power density, capacitor life (film versus electrolytic), cooling (air versus water), cell bypass architecture. A failed cell is shorted out and the drive keeps running. With a spare (N+1) cell, the failed cell can be bypassed while the drive maintains rated output; without a spare, available output power is reduced according to the vendor's cell-bypass and control strategy (a technique commonly called neutral-point shift).
Control unit
A DSP / FPGA / ARM controller runs V/f or vector control (sensorless or with encoder) for induction and synchronous motors. It computes the reference voltage and generates the PWM pattern for every IGBT, and sends gate signals over fibre-optic links for noise immunity and HV isolation. It reads back cell DC voltage, temperature and faults. Functions include flying restart, ride-through of grid dips (0 to 5 s), synchronous transfer to the grid (bumpless bypass), multi-motor master / follower, and DCS / HMI (distributed-control-system / human-machine-interface) communications.
Control algorithms (low-speed torque, synchronous-motor starting), fault diagnostics, redundancy, commissioning software and cybersecurity. Software IP defines this block; hardware convergence across vendors is high.
| Motor voltage | Cells per phase (typical) | Total cells | Input pulse number | Output levels (line-to-line) |
|---|---|---|---|---|
| 3.3 kV | 3 | 9 | 18 | 13 |
| 6 to 6.6 kV | 5 to 6 | 15 to 18 | 30 to 36 | 21 to 25 |
| 10 kV | 8 | 24 | 48 | 33 |
| 11 kV | 9 | 27 | 54 | 37 |
Other MV topologies, for context
| Topology | Composition | Trade-off vs CHB | Representative vendors |
|---|---|---|---|
| Cascaded H-bridge (CHB) | Multi-winding transformer + many LV cells + control | Best input and output power quality, modular, uses standard IGBTs. Large heavy transformer; regeneration needs specialised AFE (active-front-end) cells. | Siemens Perfect Harmony (GH180), Toshiba, WEG MVW, most Chinese vendors including INVT GD5000 |
| Neutral-point clamped (NPC / ANPC, 3 to 5 level) | Input transformer (12 or 24-pulse) or AFE + a single HV converter (IGCT or HV-IGBT) + control; often an output sine filter | Compact and efficient, easy to make regenerative with an AFE, handles high dynamics. Needs HV devices and filtering. | ABB ACS 5000 / ACS 6000, Siemens SM120 / SM150, TMEIC TMdrive, GE Vernova |
| Modular multilevel (MMC) | Transformerless: stacked half-bridge submodules per arm + control | No transformer, scales to high voltage; complex control and many capacitors. | Siemens SINAMICS SM120 CM, niche specialists |
| Current-source inverter (PWM-CSI) | Rectifier (AFE or 18-pulse) + DC-link inductor + SGCT inverter + output capacitors; control | Inherently regenerative and robust against short circuits; lower efficiency, larger DC reactor. | Rockwell PowerFlex 7000 |
| Load-commutated inverter (LCI) | Thyristor rectifier + DC reactor + thyristor inverter; synchronous motors only | Robust at 10 to 100+ MW (compressors, test beds). Poor power quality, needs harmonic filters. | ABB LCI, GE Vernova, TMEIC |
02 Market size and growth
Published estimates vary widely because of definitions: whether they include DC and servo drives, drive-systems engineering, or MV "drives" as packaged systems including transformer, filter and switchgear. The figures below are a triangulated product-level view. The spread across sources is shown so the base case can be pressure-tested.
| Segment | Base 2025 (US$bn) | Source range | Base CAGR 25 to 30 | Source range | Comment |
|---|---|---|---|---|---|
| LV AC drives | 16.5 | 15.0 to 21.9 | ~5% | 4.0 to 7.0% | Upper range includes DC and servo drives. China ≈ RMB 28bn (~US$3.9bn) and fell around 7% in 2024 per MIR. |
| MV drives | 4.5 | 1.8 to 7.5 | ~5.5% | 3.8 to 6.5% | Low end counts only large-scale drive hardware; high end includes systems and engineering. |
| VFD total (LV + MV AC) | 21.0 | n/a | ~5% | n/a | Sum of the two lines above; used for the combined share view. |
| Soft starters | 2.4 | 2.2 to 3.0 | ~5% | 4.0 to 8.2% | Roughly 80% LV and 20% MV by value. APAC fastest-growing region; North America the largest. |
Three observations. Data centre mechanical content is the single fastest-growing sub-vertical inside HVAC, riding rack density and the liquid-cooling shift into direct-to-chip cooling. Water and mining grow at a durable mid-single-digit rate against infrastructure capex cycles that are largely non-discretionary. Discrete OEM machinery is the widest range and the most cyclical: it can print 6% in an expansion year and shrink 5% in a downturn year. Vendors indexed to OEM machinery (Inovance, INVT, Mitsubishi, Yaskawa) see more revenue volatility than vendors indexed to HVAC and water (Danfoss, ABB, Schneider on the LV side).
03 Growth drivers
Energy-efficiency regulation
- EU Ecodesign 2019/1781 (Tier 2 in force July 2023): IE2 minimum for VFDs rated 0.12 to 1000 kW with losses declared at IES2 per IEC 61800-9-2 (90% motor stator frequency, 100% torque current); IE4 minimum for 2 / 4 / 6 pole motors in the 75 to 200 kW range; IE3 minimum for 0.75 to 75 kW motors. The regulation favours drive-plus-motor packages.
- US DOE (Department of Energy) motor rules, China GB 18613 and the 2024 to 2025 energy-conservation action plan.
- Carbon pricing has pulled motor-system retrofit paybacks into a 1 to 3 year window in most jurisdictions.
Electrification and infrastructure capex
- Water and wastewater (pumping is the largest single VFD vertical), desalination, irrigation (Egypt's Toshka is one live example).
- Mining and metals against a copper and critical-minerals capex upcycle; heat-pump and process-heat electrification pull compressor drives.
- Grid, LNG and pipeline compression on the MV side.
Data centres and buildings
- Chillers, CRAH (computer-room air-handler) fans, pumps and cooling towers are heavy VFD users. Liquid cooling adds CDU (coolant-distribution-unit) pumps to the count.
- Soft starters on fixed-speed chillers, backup generator sets and building service pumps.
- HVAC is the largest LV drive end-market in North America.
Industrial automation cycle
- OEM machine demand (packaging, textiles, plastics, logistics) drives LV volume and is cyclical.
- China's 2023 to 2025 downturn in general OEM demand hit domestic volumes; recovery and exports drive growth for Chinese vendors.
- Reshoring in North America and Europe adds greenfield capacity and pulls the majors' MCC / drive package business.
04 Trends and developments
| Trend | What is happening | Implication |
|---|---|---|
| Chinese localisation and export push | China LV drives localisation above 45%, MV around 56% per INVT AR 2025. Inovance and INVT are building EU presence (Stuttgart R&D, Hungary plant) and targeting the Middle East, India and Southeast Asia. | Price pressure on mid-range LV globally. Western brands retreat into engineered, installed-base and regulated segments. |
| Wide-bandgap semiconductors | SiC in compact LV drives and integrated motor drives. Higher switching frequency, smaller filters and higher power density. | Favours vendors with power-electronics depth and NEV cross-learning (Inovance in particular). |
| DC common bus and regenerative topologies | Multi-motor lines in continuous casting, pulp and paper, packaging and high-speed logistics are moving toward a single active front end feeding a shared DC bus, with individual motor inverters drawing from and pushing energy back into it. Deceleration energy from one motor accelerates another, with no braking-resistor dump. | Compresses total drive count, cabinet space and cable content. Favours vendors with AFE product depth (ABB DriveIT, Siemens SINAMICS S120, Danfoss VLT AutomationDrive) and creates an adjacency to onsite BESS (battery energy storage system) and PV integration through the DC bus itself. |
| Motor-agnostic control | Sensorless control of PM, SynRM and IM from a single firmware platform. ABB, Siemens and Danfoss push IE5 SynRM packages. | Firmware and control IP matter more; commodity inverters lose ground. |
| Low-harmonic and regenerative drives | AFE, IEEE 519 compliance, regenerative braking for cranes, hoists and test benches. | Mid-market players add AFE lines. IEEE 519 is a common tender requirement in North America and the Middle East. |
| Cybersecurity and connectivity | EU Cyber Resilience Act (Regulation 2024/2847, full obligations from 11 December 2027) imposes cybersecurity requirements on products with digital elements. IEC 62443-4-1 is increasingly used as evidence of a mature secure-development process, though CRA does not itself require the certificate. | The compliance floor raises the fixed cost of shipping connected drives into the EU. Majors and specialists with a mature secure-development lifecycle handle the cost more easily than small vendors. |
| Digital services | Condition monitoring, cloud and mobile commissioning, remote diagnostics, AR-assisted service. | Aftermarket and service attach rates become the moat in MV. ABB Ability, Siemens Xcelerator, Danfoss Drive Assistant. |
| Hybrid starting | Start drives and VFD-plus-synchronous-bypass for multiple MV motors, pulling volume from dedicated MV soft starters on large trains. | Category boundaries blur further. Specialists can upsell existing soft-starter customers. |
| Consolidation | Regal Beloit carve-out to Sun Capital (2018 to 2019), Benshaw plus AuCom (2019), Amconex formed (Feb 2026). Majors buy niche MV and service players. | The mid-market specialist group has become a rolling platform pool for private equity and strategic acquirers. |
05 Competitive positioning by segment
The Marimekkos below use one consistent colour per company across every exhibit. Eight entities are named and all others fold into grey "Other"; notable players inside "Other" are listed under each chart. Shares are indicative 2025 value-share estimates, triangulated from MIR (China), company disclosures and top-N concentration ratios in Global Market Insights, Mordor and Fortune Business Insights. Use them for directional positioning, not as a data source.
Inside "Other": Yaskawa, Mitsubishi, Fuji, Delta, WEG, SEW-Eurodrive, Lenze, Nord, Eaton, Veichi, Canroon, Invertek, KEB, LS Electric.
Inside "Other": TMEIC, GE Vernova (Converteam), Toshiba, Hitachi, WEG, Nidec / Ansaldo, Ingeteam, Hiconics (Midea), Rongxin, Eaton. Schneider's China MV share flows through Leader & Harvest (Schneider subsidiary since 2011).
Inside "Other": Eaton (around 12 to 15% in North America), Solcon, Motortronics, Carlo Gavazzi, Lovato, CG / Emotron, Fairford, IGEL, WEG, Toshiba, CHINT, Delixi, Renle, Westpow.
Strategic groups
| Group | Players | Basis of competition |
|---|---|---|
| Global full-line majors | ABB, Siemens, Schneider Electric, Rockwell Automation, Danfoss | Breadth from LV to MV, channel, automation integration, installed base, digital ecosystem, cybersecurity, service network |
| Japanese motion specialists | Yaskawa, Mitsubishi Electric, Fuji Electric, TMEIC, Toshiba Mitsubishi | Quality, motion / servo depth, Asian OEMs, MV project heritage (TMEIC) |
| Chinese challengers | Inovance, INVT, Delta (Taiwan-HQ), Veichi, Hiconics (Midea), Rongxin | Cost, speed, OEM customisation, domestic substitution, export build-out |
| MV / engineered specialists | GE Vernova, Nidec / Ansaldo Sistemi Industriali, Ingeteam, WEG | engineering plus large-motor application know-how, and a service network built out over decades on 20-year installed bases |
| Soft-starter specialists | Amconex (Benshaw, AuCom), Solcon, Motortronics, Fairford, IGEL | Application depth, MV starters, protection features, responsiveness |
06 Global full-line majors
The five global majors (ABB, Siemens, Danfoss, Schneider Electric, Rockwell Automation) hold the top of the LV market outside China and dominate MV in North America, Europe and the Middle East. What sets this group apart is the ability to package a drive with a motor, an MCC, an HMI, a PLC, a cloud service and 10-year field service contract, financed in a single tender line. Chinese challengers can beat them on unit price. Beating them on the full wrap has proven harder.
ABB
- Number-one global share in LV (~17%) and a leader in MV, particularly with the ACS 6000 / ACS 5000 NPC family for pipeline compressors, mine hoists and marine propulsion.
- Motion division 2024 revenue reported around US$8bn; drives run at attractive gross margin against the group average.
- ABB Ability gives ABB a mature installed-base monitoring and service layer.
- Strong LCI franchise (ABB ACS 6000) for very large synchronous machines, and long lead in test-bench, marine and gas-turbine starting.
Siemens
- SINAMICS covers a wide LV range in Europe; Perfect Harmony (GH180) is a well-established CHB platform in the Americas and one of the largest MV franchises globally by installed base.
- SM120 CM (MMC) is one of the best-established transformerless MV drive platforms in the market.
- Digital wrap through Xcelerator, plus a deeply integrated PLC-drive engineering environment (S7 + SINAMICS + TIA Portal).
- Motion Control & Drives revenue growth ran mid-single-digit through 2024 on process-industry electrification demand.
Danfoss
- Pure-play drive specialist among the majors; the VLT and VACON lines hold close to a tenth of global LV share.
- Deep HVAC and water penetration in North America and Europe; Drive Assistant supports mobile commissioning.
- Narrower MV portfolio than the other majors: VACON 3000 enclosed drive and Drive Kit, plus the VACON 1000 launched 2021 (now in lifecycle wind-down). Sized as a targeted application-specific franchise; the full engineered-project competition stays with ABB, Siemens and TMEIC.
- Family-controlled, patient capital lets it hold price against the mid-market Chinese wave.
Schneider Electric
- Altivar has deep penetration across French, Iberian and Middle Eastern industrial markets and pulls through EcoStruxure automation revenue.
- MV in China through Leader & Harvest, which Schneider acquired in August 2011 (now a subsidiary of Schneider Electric Industrial Automation China). Localised CHB technology for Chinese process industries.
- Aftermarket software (EcoStruxure Machine Advisor, Asset Advisor) has broad adoption in HVAC and infrastructure.
- Distribution reach through Rexel, Sonepar and its own iShop network is very deep at the LV mid-market.
Rockwell Automation
- PowerFlex 750 (LV) and PowerFlex 6000 / 7000 (MV, CSI) are frequent specifications in US oil & gas, mining and water projects; the Integrated Architecture stack (Logix + FactoryTalk + Studio 5000) drives switching cost inside installed accounts.
- Integrated Architecture (Logix + FactoryTalk + Studio 5000) makes the drive part of a broader automation platform, which raises switching cost on the installed base.
- Substantially weaker outside North America; MV share in Europe and Asia is a small fraction of the North American position.
- Kalypso and Fiix acquisitions round out the services and CMMS (computerised-maintenance-management-system) story.
Structural pressures shared across the group
- Chinese LV product parity at 60 to 70% of Western price has become a persistent feature of the Middle East, India and Southeast Asia. The majors respond by defending on IEC / UL certification breadth, cybersecurity and service.
- EU CRA compliance (Dec 2027) and IEC 62443-4-1 secure development are fixed costs that dilute margin at the LV mid-market where the majors already fight for share.
- Aftermarket capture rate on 15 to 25 year MV installed bases opens a potentially larger profit pool than initial equipment (see Exhibit 15, author illustrative model); every major has invested in remote-monitoring platforms and predictive-service business models over the past five years.
- Reshoring in the US and Europe is the counter-current, pulling greenfield MCC + drive package orders back onto majors' schedules.
The wrap: why majors' installed base is defended
A Chinese LV VFD at close to two-thirds of Western price does not automatically capture Western share. Author observation from tender-level work with industrial buyers: a significant fraction of a Western procurement specification is set not by the drive itself but by the automation stack around it (PLC integration, MCC packaging, cybersecurity evidence, service contract, and cloud wrap). That fraction varies by vertical and site but is consistently large enough to be the deciding vote when unit prices between vendors are close. What follows describes the five elements of that wrap.
PLC and HMI integration comes first. A Rockwell PowerFlex drive on a Rockwell Logix PLC talks over a native EtherNet/IP object model that a third-party drive cannot replicate without emulation. Siemens SINAMICS drives on a SIMATIC S7 PLC use PROFIdrive telegrams optimised for TIA Portal engineering. Switching one out triggers a re-engineering exercise across the automation stack. Motor + MCC packaging comes second: buyers procure a IE3 / IE4 motor and the drive from the same catalogue at the same discount schedule, which shrinks the vendor's incentive to split the ticket. Cybersecurity and compliance come third: EU CRA (December 2027) turns IEC 62443-4-1 secure-development lifecycle from a differentiator into a baseline; small vendors without a credible secure-development and vulnerability-management programme face a materially higher barrier to European industrial procurement after that date. Financing and service contracts come fourth: majors offer 5 to 10-year full-service maintenance agreements that fold the drive into an opex line for the buyer. The digital wrap (ABB Ability, Siemens Xcelerator, Danfoss Drive Assistant, Schneider EcoStruxure) runs above all of it and usually runs at higher gross margins than the initial hardware.
Author illustrative model. The multipliers above (roughly 2.5× for global majors, 1.6× for MV specialists, 0.6× for Chinese vendors) are analytical bands built from public disclosures of vendor service revenue mixes and industry commentary on installed-base capture. Actual per-unit lifetime multipliers vary by vendor, vertical and contract structure. The point of the exhibit is that the size of the service tail, and therefore the vendor economics, is set by installed-base management capability. Hardware differentiation explains a smaller share of the multiplier gap than most public narratives assume. That capability takes 10 to 15 years of tender presence, local field engineers, spares warehouses and a customer database to build. Chinese challengers have to close that operational gap before their hardware share translates to majors-level economics.
07 Japanese motion specialists
Yaskawa, Mitsubishi Electric and Fuji Electric hold strong positions in Asian OEM machine drives and in servo. TMEIC (Toshiba Mitsubishi Industrial Systems, majority-owned by Toshiba) and Toshiba are the MV specialists of the group.
Yaskawa
Global #4 in servo drives, strong LV drive franchise (U1000 low-harmonic, A1000 general purpose, GA800 vector). Strong OEM machine-drive franchise and fast application engineering. Weaker in MV.
Mitsubishi Electric
FR-A800 series is common in Japanese OEM machines with deep PLC-drive integration in Asia (iQ-R platform). Limited MV footprint.
Fuji Electric
FRENIC family across LV, with strong penetration in Japanese HVAC and elevator. FRENIC-MEGA and FRENIC-Ace are the volume products.
TMEIC
Leading MV drive vendor for steel mill, mining and O&G in North America and Middle East. Long track record on very large synchronous-motor starting via LCI (TMdrive-XL85).
08 Chinese challengers
The two Chinese-listed drive vendors that matter globally are Inovance and INVT, both founded by former Huawei Electric / Emerson Network Power engineers, both listed in Shenzhen (Inovance in 2010, INVT in 2009). Domestically they are #1 and #2 respectively; the export gap is much wider and closing slowly.
The strategic paths are different in a way that matters. INVT ran an export-first playbook: distributor build-out in Middle East, India and Africa from the mid-2010s, targeting mid-market pumping and OEM machines with a price point about a third below the majors. Inovance ran the opposite playbook: dominate domestic OEM discrete manufacturing at scale, cross-subsidise from NEV powertrain, then buy European R&D (Stuttgart) and manufacturing (Székesfehérvár, Hungary) to attack Europe with locally-built product. Author scenario for 2028: extrapolating current growth rates and the localisation build-out, INVT's overseas mix could reach the low-to-mid 40s and Inovance's the high 20s. The forecasts assume steady growth in both companies' export execution and no significant Chinese domestic recovery. Inovance is likely to keep the higher absolute overseas revenue given its 10-times-larger base.
8.1 Inovance (汇川技术, SZSE 300124)
Founded in 2003 by a Zhu Xingming-led team from Huawei Electric / Emerson. Grew from about US$95m of revenue at listing to roughly US$6bn in 2025. China's automation champion: #1 in China LV drives at roughly a fifth of the market and #1 in general servo (~31%). A second growth engine in NEV powertrain now accounts for almost half of group revenue.
Strengths
- Scale and a shared power-electronics platform across drives, servo, NEV inverters and SiC. No drive-only specialist can match the cost and learning-curve advantage.
- Full automation stack (PLC, HMI, servo, drives, robots, elevator control through Monarch) supports solution selling into OEMs.
- Europe presence: Stuttgart headquarters with local R&D, a plant in Székesfehérvár (Hungary) and offices in France, Italy, Spain and Turkey. Products adapted for Europe (MD800 / MD810 / MD880 multi-drives).
- Fast NPD cadence built on a Huawei-style IPD process.
Weaknesses
- Overseas share is still low (roughly low-to-mid teens percent of automation revenue). Brand and service density outside China remain thin.
- MV drives and soft starters are secondary lines; the strength is OEM / discrete LV.
- Geopolitical exposure: tariffs, "China-free" procurement in US utilities and defence-adjacent sectors.
- NEV margin volatility weighs on group profit.
8.2 INVT (英威腾, SZSE 002334)
Founded in Shenzhen in 2002 by a team from the Huawei Electric / Emerson Network Power lineage and chaired by Huang Shenli for over twenty years. Listed in 2009. INVT is the #2 domestic LV brand and a credible MV drive supplier. Diversification into UPS / data-centre, PV / storage and NEV drivetrains has diluted focus and profitability.
| Segment 2025 | Revenue (RMB m) | YoY | Notes |
|---|---|---|---|
| Industrial automation | 2,811 | +5.2% | LV drives (GD20, GD200A, GD270 HVAC, GD350, GD800, GD600 multidrive), MV drives (GD5000 CHB), servo, PLC, elevator control |
| Network energy | 729 | −7.9% | UPS up to 1.2 MW per cabinet, precision cooling, modular and liquid-cooled data centres |
| PV & storage | 170 | −23.6% | Margin repaired (+10.8pp to 17.1%) |
| NEV drivetrain | n/d | +30.7% | Commercial-vehicle e-drives and power systems; gross margin 18.5% |
Strengths
- Deep LV drive platform and co-author of the Chinese national LV VFD standard. 1,760 patents; TÜV-accredited lab.
- MV: 10,000th unit shipped March 2024 (INVT press release); 14.5 MVA unit third-party certified; strong references in coal, metals and water.
- High overseas mix (about a third of revenue) at higher margin, with 100+ country distribution. Middle East and South Asia focus.
- Data-centre power / cooling adjacency cross-sells into VFD for HVAC.
Weaknesses
- Sub-scale against Inovance (close to a tenth the group revenue). R&D thinly spread across four businesses.
- Profit fell 27% in 2025. FX losses and opex growth outpaced revenue.
- The brand runs in the value segment in Europe and North America, with limited UL-listed and cybersecurity-certified portfolio depth.
- No soft-starter franchise of note.
Inovance vs INVT at a glance
| Metric (2025) | Inovance | INVT |
|---|---|---|
| Group revenue | RMB 45.1bn | RMB 4.47bn |
| Revenue growth | +21.8% | +3.5% |
| Industrial automation revenue | RMB 22.3bn | RMB 2.81bn |
| China LV drive rank (MIR 2024) | #1 overall (~20%) | #2 domestic brand |
| MV drives | Present, secondary | Established (GD5000) |
| R&D intensity | ~9.5% | ~11%|
| Europe footprint | R&D + plant | Sales / service |
Tariff and supply-chain sensitivities
The Chinese-vendor thesis has two live constraints beyond the export playbook. First, tariffs. Section 301 tariffs on Chinese-origin power electronics, EU anti-dumping investigations on adjacent categories, and "China-free" procurement clauses in US utility and defence-adjacent tenders raise the landed cost of Chinese LV drives by roughly 10 to 25% in Western markets depending on classification. Localised assembly in Hungary (Inovance) and distributor build-out (INVT) partially neutralise this, but the tariff exposure remains the largest single downside risk to the extrapolated overseas share curves in Exhibit 16. Second, upstream bill-of-materials concentration. High-voltage IGBT modules from Infineon, Mitsubishi Electric and onsemi, silicon-carbide MOSFETs from Wolfspeed, Infineon and ROHM, and grain-oriented electrical steel for transformer cores from POSCO, Nippon Steel and ThyssenKrupp all come from relatively concentrated supply pools. Chinese vendors have made progress on domestic IGBT and SiC alternatives but retain sizeable dependence on merchant supply for the highest-density and highest-voltage segments.
The other Chinese entities that matter
Hiconics (Midea). MV CHB specialist with sizeable share in Chinese coal, steel and cement. Rolled into the Midea industrial arm after Midea's controlling investment. Rongxin. Independent MV CHB vendor with strong installed base in Chinese metals and mining. Veichi and Canroon. LV mid-market player with growing OEM and export mix. Delta Electronics (Taiwan-HQ, not mainland). Strong LV franchise across HVAC and OEM machines, with global distribution built out over 20 years. Positioned between the Chinese cost curve and the Japanese motion specialists.
09 Soft-starter specialists
The soft-starter category is small (~US$2.4bn) and slow-growing (~5%). Roughly half is captured by the majors' packaged product (ABB PSTx, PSE, Siemens SIRIUS 3RW, Schneider Altistart 22 / 48, Rockwell SMC Flex / SMC-50, Eaton S811+). The other half is the specialist group. What defines this group is depth on advanced starting features, MV listings, higher voltage variants (1,000 to 1,200 V and 2.3 to 13.8 kV), and short lead times for engineered projects.
| Specialist | HQ | Product depth | Where it competes hardest |
|---|---|---|---|
| Amconex (Benshaw + AuCom) | Sendenhorst DE / Pittsburgh US / Christchurch NZ | LV EMX4 (200 to 690 V, 1200 V variant) and MV 2.3 to 13.8 kV; MVH2.0 CHB VFD to 25 MW; MV heater controller | North American MV, water and irrigation globally, Middle East / Africa pumping |
| Solcon | Israel | HRVS-DN and RVS-DN LV series; MV starters to 15 kV; heavy on pumping and desalination features | Middle East, Africa desalination and irrigation |
| Motortronics | US / UK | VMX / MVC LV soft starters; MVC MV to 15 kV; oil and gas focus | US oil and gas, mining |
| Fairford Electronics | UK | Synergy and QFE LV lines; strong energy-optimising algorithms for lightly-loaded motors | Global pumping OEM channel |
| IGEL Electric | Germany | SmartStart and MegaStart family, LV and MV; German industrial pumping and mining | DACH industrial, MV to 12 kV |
| CG (Emotron) | India / Sweden | TSA and MSF LV soft starters; MV starters; strong on load monitoring and shaft-power features | Indian and Nordic industrial |
Below this level runs a long tail of Chinese and East European soft-starter builders (CHINT, Delixi, Renle, Westpow, Carlo Gavazzi, Lovato) that compete almost exclusively on price at the LV commodity end. The specialists' defence is application depth: adaptive acceleration control, PowerThrough (running on a failed SCR), inside-delta connection, DC / soft braking, and rich motor protection features that get specified into engineered water, mining and marine tenders.
10 Where they are deployed
Twelve application-level snapshots follow. Deployment vignettes follow across the most common industrial and infrastructure contexts, each with what a drive or starter is doing and the vendor mix that usually wins. All examples are drawn from public references and generic industry patterns; specific customer names are omitted where public disclosure is uneven.
The AI data-centre chain: a second-order drive opportunity
The direct AI drive-content story is mundane: GPUs consume DC power, not motor loads. The interesting story is the second-order chain. Higher rack density (from roughly 30 kW per rack five years ago toward 130 kW+ per rack for GB200 / MI300X classes) forces a shift from air cooling to direct-to-chip liquid cooling. That shift can add or increase several motor-driven subsystems depending on the cooling architecture: CDU pumps, secondary-loop circulators to interface with facility water, and higher-duty cooling-tower or dry-cooler fans as heat rejection temperatures rise. Specific topology varies by site (facility-water CDU versus rack-integrated cooling versus rear-door heat exchanger). Each subsystem is a small LV VFD tender. On a 50 MW liquid-cooled data hall, the cooling-side drive content per MW rises sharply against a comparable air-cooled hall. The vendor set that benefits is the LV VFD majors with strong HVAC channels, including Danfoss VLT, ABB ACH580 and Schneider Altivar Process. The end-to-end chain from rack density up, through cooling architecture shifts, to mechanical drive content per MW rising, connects the motor-control category directly to the AI capacity build-out that drives the hyperscaler capex cycle.
11 Substitution and cannibalisation
Three category boundaries are moving. Two are quantifiable now; the third is emerging.
How much LV soft-starter volume has migrated to VFD, and how much remains
The cleanest way to think about VFD versus soft-starter substitution is application-by-application, driven by two variables: the motor duty cycle (how much of the time it runs below rated speed) and the load type (how motor power scales with speed). Centrifugal pumps and fans follow the affinity laws (P proportional to N³), which delivers the largest energy saving. Screw compressors follow closer to linear scaling. Constant-torque loads such as crushers, conveyors and positive-displacement pumps see almost no VFD energy saving.
The chart plots the 10-year NPV per kW of choosing a VFD over a soft starter, against motor duty cycle, across load categories. Above the zero line the VFD pays back; below, the soft starter wins. Centrifugal pumps flip to VFD at roughly 25 to 30% duty at partial speed; HVAC fans at roughly 35 to 40%; screw compressors at 55 to 65%; constant-torque loads stay soft-starter territory across the range. The shaded rectangles bound the practical decision zones.
Quantifying the substitution
Backing out the substitution rate from a mix of published market data, distributor commentary and the payback economics in Exhibit 18 suggests the following ballpark for the LV segment. Percentages should be read as author estimates throughout the table below (public measured shares at this granularity are unavailable).
| Application category · author estimates | 2015 est. | 2025 est. | 2030 est. | Comment |
|---|---|---|---|---|
| Centrifugal pumps < 500 kW | ~65% (2015) | ~30% | ~15 to 20% | The most-cannibalised application. Water utilities, HVAC pumping and process fluid handling have shifted to LV VFD as prices fell below US$80 per kW. |
| HVAC fans and blowers | ~50% | ~25% | ~12 to 15% | Building-code push in EU (Ecodesign) and US (DOE) accelerated the migration. Duty cycle at partial speed averages 60 to 80% in commercial HVAC. |
| Screw & centrifugal compressors | ~70% | ~55% | ~35 to 40% | Slower migration because compressors run at higher duty at full speed. VFD substitution accelerates as SiC cuts drive footprint. |
| Crushers, conveyors, mixers (constant torque) | ~85% | ~80% | ~75 to 80% | Defence zone. No energy payback for VFD; soft starters keep the market on inrush protection and mechanical shock reduction. |
| Irrigation, generator auxiliaries, chillers (fixed speed) | ~90% | ~85% | ~80 to 85% | Fixed-speed by design. Duty cycle economics do not clear for VFD. Growth of the pool has kept soft-starter absolute volume rising. |
Two observations drop out. First, the LV soft-starter category has not shrunk in absolute terms despite this substitution. Global LV soft-starter revenue grew roughly 4% CAGR from 2015 to 2025, matching the broader industrial capex cycle, because backfill from fixed-speed applications in emerging markets and generator-set / building-services segments has replaced the volume lost to VFD in Western pumping and HVAC. Second, the substitution rate has slowed since 2022. Chinese LV VFD prices already crossed the payback threshold for most cube-law loads; further price falls do not open new applications, they just deepen penetration inside applications that were already VFD-winnable.
The MV story is different
The classic scheme buys six MV soft starters plus six bypass contactors, at ~$180k each. The start-drive scheme buys one 3 MW MV VFD (~$400k) plus six synchronous-transfer circuits (~$70k each) plus one bypass contactor per motor (~$30k each). At six motors the start-drive scheme is roughly 7% cheaper on hardware ($1.02m vs $1.08m); at twelve motors the gap widens to a quarter of the classic-scheme capex ($1.60m vs $2.16m). Numbers are indicative list-price stacks; actual vendor-quoted project pricing runs quite different across regions and buyer relationships. The substitution removes soft-starter cabinets entirely from multi-motor MV plants, instead of eating into their share application-by-application.
The threat is concentrated in specific applications: pipeline pumping stations, cooling-water pumps at power plants, ID-fan farms, and marine cargo-pump systems, where a start drive credibly beats six or ten dedicated MV soft starters. MV soft starters retain single-motor fixed-speed applications: crushers, MV feeders, boiler-feed booster pumps below the start-drive economic break, and any application where a single motor and no speed control is the requirement. Vendor responses follow the natural adjacency: AuCom's MVH2.0S and Siemens' MV Start / Perfect Harmony solutions target the multi-motor MV pumping and compressor-train segment directly.
The classic scheme scales linearly with motor count at $180k per motor. The start drive incurs a fixed $400k VFD cost regardless of motor count and adds only $100k per motor for the sync-transfer plus bypass. The break-even is at five motors: below that, one soft starter per motor is cheaper; above that, the start drive widens its lead. At twelve motors the start drive is $560k cheaper, or a ~26% capex saving against the classic-scheme total. Real-world tender pricing shifts the break-even by one or two motors either way depending on volume discounts, but the two curves keep their positions relative to each other.
Interactive TCO calculator compares VFD, soft starter and direct-on-line across capex, energy cost and 10-year lifetime NPV. Adjust motor size, load type, duty cycle, electricity price and analysis period.
Leading soft-starter specialists execute all three responses in parallel. Pure hardware focus without any of the three points to structural share loss.
Both floors have physical origin; the commercial framing follows. Neither closes as VFD prices fall. Together they define the applications where soft starters retain the win even against aggressive Chinese LV VFD pricing.
12 Investment lens
The map shows the same structural pattern that runs through the essay: the majors have the widest spread of product, service and software capabilities. Chinese challengers are strongest on product economics and increasingly on MV technology but have a thinner installed-base and service layer. The path for Inovance and INVT to close the gap goes through service network build-out, secure-development capability and cloud platform development, all of which take more capital and time than adding a new drive SKU.
Where a specialist or challenger can win share depends on how far the wrap has been closed. The questions below determine the answer for any drive company under review.
- Who owns the power stage IP? An LV drive built on a sourced Asian ODM platform is a marketing exercise. An MV drive built on in-house cell design, control firmware and factory test capability is a technology franchise. In diligence, ask for patents, source-code ownership, ODM (original design manufacturer) contracts with exclusivity terms and the split of BOM (bill-of-materials) engineered content in-house.
- What is the cybersecurity roadmap? The EU Cyber Resilience Act (full obligations from 11 December 2027) sets cybersecurity requirements for connected products sold in the EU. IEC 62443-4-1 is increasingly the evidence framework buyers accept for a mature secure-development lifecycle, though CRA does not itself mandate 62443 certification. Ask for PSIRT process, SBOM generation, secure-boot capability and readiness for the CRA deadline. A vendor without a coherent plan faces a proportionately larger fixed cost of catching up.
- How exposed is the vendor to Chinese CHB competition in MV export markets? INVT, Hiconics and Rongxin compete hardest in the Middle East, Africa and South Asia, and increasingly in Latin America. Win / loss data at the project level, and price-point comparisons on identical specifications, are the diligence artefacts to demand.
- What is the aftermarket capture rate? On MV drives with 15 to 25 year field service lifetimes, service and spare parts can generate multiple times the original equipment revenue on the author illustrative lifecycle model (roughly 2–3× for global majors; see Exhibit 15). Aftermarket attach rate, service network coverage, remote-monitoring adoption and predictive-maintenance revenue split are the metrics that separate a hardware seller from a franchise.
- How much SiC exposure is in the LV roadmap? Silicon carbide adoption in LV drives is currently niche and holds the incremental power-density and efficiency gains for the next generation. Vendors with an NEV cross-platform (Inovance is the standout) have a manufacturing-scale advantage; standalone drive specialists have to buy SiC devices from Wolfspeed, Infineon or ROHM at merchant prices.
- What is the cost of platform convergence? Multiple heritage platforms (an LV soft starter, an LV VFD, an MV soft starter, an MV VFD, each with its own firmware and HMI) cost engineering, certification and support money to sustain. A single control platform can reduce the engineering, certification and support burden of maintaining multiple heritage product families; where that translates into higher margin depends on product mix and execution. Vendors that have driven this convergence (ABB DriveIT, Danfoss VLT / VACON) run higher margin than those still funding two or three parallel firmware branches.
Two structural asymmetries the vendor scorecard understates
1. Cybersecurity as a fixed-cost moat. The EU Cyber Resilience Act (Regulation 2024/2847, obligations from 11 December 2027) sets cybersecurity requirements on connected industrial products. Evidence of a mature secure-development process (often through IEC 62443-4-1 alignment), PSIRT, coordinated vulnerability disclosure, SBOM generation and cryptographic infrastructure together represent a fixed running cost. Author scenario: industry sources cited in public trade press place a mid-sized drive vendor's compliance programme in the low-to-mid single-digit millions of euros per year. A major spreads that cost across billions of drive revenue; a specialist at roughly €150m revenue spreads it across a much smaller base. The compliance floor tilts economics toward consolidation. On this trajectory at least two soft-starter specialists or second-line LV drive vendors could fold into larger platforms by 2028. This is an author call; no market forecast backs it yet.
2. SiC scale in NEV creates a durable cost advantage for Inovance. A silicon-carbide MOSFET module built for 200 kW automotive traction has the same physics as one built for a 90 kW industrial drive. Inovance ships large NEV inverter volumes across its automotive powertrain business, which puts it on a manufacturing curve that a drive-only specialist cannot match. Author scenario: if SiC LV drives cross into mid-market volumes around 2027 to 2028 and merchant SiC device prices from Wolfspeed, Infineon and ROHM stay elevated, a vertically integrated NEV-plus-industrial platform could hold a low-double-digit percent BOM advantage on the power stage against pure-play drive vendors. The size of the advantage depends on merchant SiC price trajectory, which is uncertain; the direction is more defensible than the magnitude. That structural asymmetry is what the current global share table does not capture. There is a physical cost as well: SiC drives switch at high dv/dt (typically 10 to 20 kV per microsecond), which stresses standard motor insulation and induces bearing fluting from common-mode capacitive currents. Volume adoption at the mid-market waits on either reinforced-insulation motors (Class H, ceramic-coated bearings) shipping as standard or on integrated sine filters getting cheaper. Whoever pays that system-level delta decides the pace of adoption.
Three regional anomalies worth understanding
Why Rockwell wins North America but not elsewhere. Rockwell's Integrated Architecture (Logix + FactoryTalk + Studio 5000) has been the reference automation stack in North American process, oil & gas and mining plants since the mid-1990s. Once a plant is on Logix, the switching cost to move a drive to a non-Rockwell brand can become substantial once PLC (programmable-logic-controller) logic, commissioning, engineering and maintenance practices are embedded in the plant. That installed-base defence works in North America because Rockwell built out the automation stack first. In Europe, Siemens got there first with SIMATIC. In Asia, Mitsubishi and Omron did on OEM machines. Rockwell has not been able to replicate the automation-stack lead outside its home continent. The result is a global drive share considerably smaller than the strong position it holds inside North American MCC-packaged installations.
Why Schneider acquired outright. Schneider acquired Leader & Harvest outright in August 2011 and operates it as a Chinese subsidiary today. Leader & Harvest brought a domestic CHB installed base in power generation and metallurgy that a pure Schneider brand at Chinese price points would not have won, and Schneider's Altivar LV brand alone would not have opened the MV project door. The subsidiary structure remains the reference case for how a Western major captures share inside Chinese MV drive procurement, and the resulting position makes Schneider one of the few Western vendors with a live footprint inside Chinese MV procurement.
Why Danfoss's MV footprint is deliberately narrow. Danfoss does ship MV drives (VACON 3000 enclosed drive and Drive Kit, VACON 1000 launched 2021) but has kept the MV portfolio much narrower and more application-specific than ABB, Siemens or TMEIC. Danfoss frames it as a resource-allocation choice. Engineered MV project execution demands a resource footprint that would dilute returns on the HVAC-heavy LV business. Danfoss chose to concentrate R&D and channel investment on LV volume growth. That focus explains why VLT plus VACON hold close to a tenth of global LV share against a much larger group revenue, and why Danfoss competes selectively on MV, leaving the full voltage ladder to the full-line majors.
The strategic question of the next five years
Whether Inovance can turn its Stuttgart R&D and Hungary manufacturing footprint into a materially larger European LV-drive position by 2030. The domestic Chinese market is at cyclical low and offers limited incremental scale; the NEV powertrain business faces margin compression; the European industrial drive market is the largest remaining single addressable pool where Inovance is under-indexed. A move into the top three in Europe would validate the export and localisation playbook and unlock a Middle East / Africa follow-on. A much smaller share would leave the Chinese vendor thesis concentrated on China and emerging markets, with Western majors retaining their premium position. The rolling four-quarter European revenue mix is the primary tracked signal in this space.
13 Economic pools inside the category
The motor-control category reads as one addressable market on a slide. Underneath, it is a set of separate economic pools with different competitive dynamics, different capital cycles and different winners. The share numbers earlier in this piece described who has the volume today; this section describes where the profit pool is moving.
Commodity LV hardware
Sub-90 kW general-purpose LV drives for pumping, HVAC and OEM machines. Sold on price, channel breadth and feature parity. Chinese vendors (Inovance, INVT, Delta, Veichi) are winning share globally; Western majors defend on HVAC-specific product tiers and building-automation integration. Author illustrative gross-margin band: low twenties. This is where the volume gets pressure-tested first.
High-performance LV and integrated drives
SiC compact drives, integrated motor drives (drive mounted on motor housing), IE5 SynRM packages, servo-adjacent motion. Where power density, control firmware IP and motor-drive integration set the product apart. ABB, Siemens, Danfoss, Yaskawa hold strong positions here; Inovance uses NEV cross-platform economics to compete. Author illustrative gross-margin band: mid thirties plus. This is where LV innovation goes next.
MV engineered systems
Project-sold drives for pipelines, mining, power generation, marine, cement. Won on engineering depth, reference base, application know-how and reliability track record. ABB, Siemens, TMEIC, GE Vernova, Rockwell hold Western projects; Chinese CHB vendors (INVT, Hiconics, Rongxin) win in domestic China and mid-market Middle East / Africa. Author illustrative gross-margin band: hardware in the thirties, project margins on the total package higher.
Soft starters
Fixed-speed motor protection: pumping, chillers, generator auxiliaries, irrigation, crushers, MV multi-motor fixed-speed plants. Application depth and MV listings define the specialist group (Amconex, Solcon, Motortronics, Fairford, IGEL). VFD substitution eats into the LV pumping / HVAC edge; SCR silicon-area cost floor protects the constant-torque core. Author illustrative gross-margin band: low thirties for specialists.
The installed-base / service pool
Aftermarket parts, cell retrofits, remote monitoring subscriptions, predictive-maintenance contracts, cybersecurity firmware updates on 15 to 25 year MV field service lifetimes. The pool with the longest duration and highest margin in the category. ABB Ability, Siemens Xcelerator, Danfoss Drive Assistant, Schneider EcoStruxure all belong here. Author illustrative gross-margin band: service contracts commonly in the fifties; the exit-value multiplier on this pool is substantially higher than on the hardware pool.
14 The contrarian view
Each thesis below inverts a widely repeated view of the motor-control category. Some restate a point already latent in earlier sections (the retrofit trap, the substitution economics), some run against the grain (the harmonic ceiling, the firmware moat, the switchgear-level diagnostics migration). Together they frame a serious diligence conversation on this category.
1. The cooling and harmonic BOP (balance-of-plant) trap on active drives
The primer's Exhibit 4 already priced installed VFDs at a 1.6× multiplier over equipment. In harsh-environment installations that multiplier undersells the picture. A 1 MW drive dissipates 20 to 30 kW of continuous heat that has to leave the enclosure. In NEMA 4/4X sealed cabinets, high-ambient outdoor sites, mines, marine decks and desert lift stations the cooling package (dedicated HVAC or closed-loop chiller) can cost more than the drive itself, adds failure points and consumes continuous auxiliary power. Stack that against IEEE 519 harmonic mitigation and output dv/dt filters for long cable runs and the total installed cost of an active drive can run to a substantial multiple of a bypassed soft starter's TIC. Applications where the arithmetic breaks against the mainstream story: outdoor pump stations, sealed process lines, marine deck machinery, arctic and desert siting. The essay's Exhibit 22 physical-floor analysis is the analytical anchor for this thesis; this contrarian view is its BOP-side twin.
2. The margin pool is on the packaging and certification side
The open-component IEC market is where Chinese and European Tier-1 vendors race to the bottom on chassis starters and drives sold as catalogue SKUs. The NEMA / UL 508A packaged-panel market in North America runs at gross margins comparable to specialised process instrumentation because the customer is buying a pre-certified system rated for extreme duty (-40°C operation, arc-resistant construction, integrated disconnects, arc-flash-labelled switchgear). Amconex's Benshaw division, Rockwell's IntelliCENTER packaged MCCs and Eaton's IntelliSense series compete in this zone. Enterprise value in motor control does not come from the silicon; it comes from the UL 508A / CSA engineering scope and the field-liability protection that certification brings. Investment implication: private-equity roll-ups in the soft-starter and MV specialist ranks look less like drive-IP consolidation and more like panel-shop certification consolidation. That reframing changes both the target list and the diligence questions.
3. The harmonic ceiling redraws the hybrid fleet architecture
Widespread VFD adoption turns linear motor loads into non-linear harmonic-generating loads. Facilities running twenty or thirty standard six-pulse drives on a common bus start hitting IEEE 519 compliance thresholds and utility distortion penalties, particularly on weak-grid sites and generator-backed operations. Upstream mitigations (18-pulse rectifiers, active front ends, tuned harmonic filters) reprice the VFD substantially above its catalogue point. The bypassed soft-starter path introduces zero steady-state harmonics because the SCRs conduct only during ramp and the internal contactor takes them out of the current path afterwards. A design pattern that should become more common through the late 2020s: hybrid fleets that use VFDs on the twenty to thirty percent of process nodes that genuinely need continuous speed modulation, and keep the rest on bypassed soft starters to preserve bus power quality. This is a different substitution logic from the payback-driven story in Section 11, and it holds even where the energy math favours VFD on every node.
4. Predictive maintenance is drifting from drive-native to switchgear-level analytics
The industry narrative has been that smart drives with edge processing become the universal IoT hub for machine health. Field reality has been messier. Vendor-specific analytics stay locked inside each vendor's cloud; plant SCADA and DCS integration remains fragmented; in harsh processes the drive's own power electronics (capacitors, gate drivers) often fail before the motor does, which makes the sensor hub the weak link in the reliability chain. The interesting adjacency is motor current signature analysis (MCSA) read at the switchgear or MCC level through non-invasive current transformers, covering every motor on the line without depending on individual drive firmware or vendor lock-in. That shifts the diagnostics value from the drive vendor to the switchgear / MCC vendor, and reroutes the digital-services revenue pool with it. Vendors positioned for this shift include ABB Ability (via their switchgear line), Schneider EcoStruxure Asset Advisor, and specialist MCSA vendors such as Iris Power and BaseKit.
5. The firmware moat holds; the sheet metal is replacement value
Applied to soft starters: municipal pump stations, HVAC systems and irrigation trunk lines face water-hammer risk when a large pump stops. Standard linear deceleration ramps on a cheap VFD or basic soft starter fail because pump torque drops non-linearly with speed, so a constant-slope command produces a non-constant flow deceleration and the water column overshoots. AuCom's Adaptive Acceleration Control models the fluid deceleration curve in real time without external pressure transducers; Fairford's Optistart uses a related approach; Amconex's combined portfolio bundles both under one certification umbrella. That firmware is what a diligence buyer is acquiring in a specialist roll-up. The thyristors and the sheet metal have replacement value only. The Sun Capital thesis on Amconex reads more clearly when the firmware IP layer separates from the hardware layer and the diligence question becomes which is defensible over ten years.
Reading them together
The cooling-BOP, harmonic-ceiling and firmware-moat views protect the soft-starter category against the substitution economics in Section 11. The margin-pool and MCSA-at-switchgear views reroute the profit-pool question in Sections 6 and 12 toward adjacencies the market-share tables do not capture. A diligence brief that engages with all five ends up with a shorter target list and a longer set of questions per target. That is the useful contrarian output.
15 Structural mechanics behind them
Each mechanic below underpins one or more of the contrarian views in Section 14 and gives the underlying commercial / engineering evidence a diligence read should engage with.
1. IEEE 519-2022 enforcement and the substation bottleneck
The revised IEEE 519-2022 framework caps Total Demand Distortion (TDD) at 5.0% at the point of common coupling for industrial sites with short-circuit ratios (Isc/IL) under 20. A six-pulse VFD injects rich 5th, 7th, 11th and 13th harmonic currents back into the plant bus; those non-linear currents drive eddy-current heating in upstream substation transformers, forcing operators either to de-rate transformer capacity by 15 to 30% (K-factor penalty) or to fund active harmonic filters. In brownfield expansions where substation capacity is fixed, specifying bypassed soft starters on steady-state continuous loads (slurry, dewatering, ventilation) is often the reason a plant avoids an eight-figure utility service upgrade. This is the enforcement mechanism behind Contrarian View 3.
2. Centralised MCC lineups vs decentralised field controls
The structural war in plant electrical design runs between centralised NEMA / IEC motor-control-centre lineups and field-distributed on-machine controllers. A centralised MCC requires an air-conditioned electrical room, massive copper bus runs and a single arc-flash boundary; a decentralised field control mounts at the motor in a NEMA 4X / IP66 enclosure with minimal cable length but dumps heat into the process bay and distributes the maintenance perimeter. In greenfield high-density builds (water reclamation plants, battery gigafactories, critical-process mining) e-house floor space is priced at a substantial premium per square metre. MCC-mounted VFDs demand large cooling systems and produce concentrated arc-flash zones; motor-mounted variants require ruggedised sealed heatsinks and conformal coating against corrosive gases such as H2S. Packaging specialists win by engineering modular outdoor power kiosks that stand outside the expensive e-house footprint. Benshaw's BMCS (outdoor power kiosk) enclosures and similar Rockwell / Eaton lineups shift the civil-engineering capex arithmetic. This is the mechanism behind Contrarian View 2.
3. The PLC ecosystem-lock-in illusion breaks in high-risk process zones
Automation majors (Siemens, Rockwell, Schneider, ABB) have long operated the thesis that whoever owns the PLC owns the drives and starters, and they design proprietary backplanes and fieldbus profiles (Rockwell Studio 5000 Premier Integration, Siemens TIA Portal PROFIdrive telegrams) to keep third-party motor controls out. In deep-well extraction, mine hoists, high-pressure booster-pump trains and other high-risk process zones the plant-floor engineers frequently veto the PLC vendor's native drives and starters. The reason is that Tier-1 automation catalogues optimise for logistics and discrete factory automation; they lack specialised torque-profiling firmware, ultra-low-temperature thermal packaging, and high-impedance fault-clearance behaviour. Independent specialists (Amconex, Danfoss, WEG) thrive by offering open vendor-agnostic gateways over EtherNet/IP, PROFINET, Modbus TCP alongside power electronics that survive dirty, unstable rural grids. Field reliability beats software-suite convenience at 3 a.m. That mechanism amplifies Contrarian View 4 (predictive maintenance shifting away from drive-native) and Contrarian View 5 (firmware moat).
4. Short-circuit coordination and withstand ratings as the underwriting moat
The common assumption is that commoditising Asian power-semiconductor manufacturing will commoditise the motor-control category. It is true that basic IGBTs, thyristors and microcontrollers are widely available merchant commodities and an Asian manufacturer can assemble a 30 kW drive chassis at a fraction of Western costs. The defensibility of the motor-control business does not track the silicon wafer; it tracks the short-circuit coordination and withstand rating (SCCR) of the packaged system. Achieving a UL 508A combination rating of 65 kA or 100 kA with Type 2 coordination, meaning the starter survives a downstream dead-short without damage to the contactor or thermal unit, requires thousands of hours of destructive testing, specific breaker-contactor pairings and rigorous regulatory certification. An EPC will not risk multi-million-dollar plant commissioning delays by buying uncoordinated chassis hardware. Motor-control specialists are underwriting industrial operational risk. Their enterprise value tracks the library of certified, coordinated electrical combinations that guarantee fire-safe fault-clearing performance on a 480 V / 690 V industrial grid. This is the mechanism behind Contrarian View 2 and Contrarian View 5.
Diligence stress-tests. Any target in this category should be stress-tested on IEEE 519 exposure, MCC / distributed architecture strategy, PLC-independence of the product scope, and depth of the SCCR / Type 2 combination library.
5. Motor-drive compatibility: fast switching moves the failure mode from the drive to the motor
Modern SiC and 3-level IGBT inverters transmit their edges into the motor. Standard induction machines predate the dV/dt, common-mode voltage and reflected-wave amplitudes that these drives produce at the shaft end. NEMA MG1 Part 31 and IEC 60034-18-41 exist to make this a specification conversation at design time, not a warranty argument after a bearing failure.
Diligence implication. When a target's install base skews old-motor-and-new-drive, ask for the field-return data on bearing replacements and winding megger tests in the first 18 months post-retrofit. A vendor whose retrofit product ships with dV/dt filters, insulated NDE bearings and shaft grounding rings as standard is engineering to the physics; one that treats these as accessories is passing the problem downstream.
6. Fieldbus and motion-profile lock-in behind the installed base
The reason an embedded drive is hard to swap is that the drive is one layer of a four-layer stack. Above the drive are the fieldbus, the motion profile and the PLC integrator, and each is engineered around a specific vendor family. The map below reads the same way on every large plant floor.
Diligence implication. Segment the target's revenue by socket type. Fan, pump and conveyor sockets on Modbus TCP are contestable by Chinese challengers on price. Synchronous multi-axis motion on CIP Motion, PROFIdrive or EtherCAT CoE stays locked in; displacing the drive requires re-engineering the PLC program and the motion profile. Ask what share of drive revenue falls in each category.
16 The M&A playbook
Five economic pools with different competitive dynamics produce a corresponding set of consolidation motions. The visible motions differ in pace and scale. Naming the buyers, the targets and the strategic motion for each turns the M&A framework into an actionable shortlist for an operating investor.
Motion 1: Majors close geography or MV service gaps
ABB, Siemens, Schneider, Rockwell and Danfoss have complete LV lines and mostly complete MV lines, but they have coverage gaps in specific geographies (Middle East service, LatAm project execution) and in specific MV sub-topologies (transformerless MMC, LCI at very high powers). The most likely target class is TMEIC (if Toshiba chooses to divest the JV stake at some point), regional MV specialists (Nidec / Ansaldo Sistemi Industriali, Ingeteam), and pure-play service networks in high-growth geographies. Rationale is straightforward: buying a €200m to €500m specialist is faster and cheaper than building a decade of tender presence in an underweight region.
Motion 2: Mid-market LV consolidation under Chinese pricing pressure
The mid-market LV specialist group (Lenze, Nord, KEB, SEW-Eurodrive divisions, Invertek, Delta's LV lines, various European regional brands) is the pool most exposed to Chinese pricing at the volume end. Consolidation buyers likely include Danfoss (extending LV depth), Yaskawa (adding European scale), WEG (Brazilian roll-up), and PE platforms rolling up two or three specialists to reach scale. Rationale: escape sub-scale versus Inovance and INVT at the mid-market price point while retaining a European brand and engineering base.
Motion 3: PE roll-up of the soft-starter specialists
This is the motion Sun Capital is already executing with Amconex (Benshaw + AuCom + further bolt-ons). The soft-starter specialist pool (Solcon, Motortronics, Fairford, IGEL, CG Emotron, plus a long tail of regional MV starter shops) is fragmented, cash-generative and increasingly exposed to the cybersecurity compliance fixed-cost floor. Author scenario: a plausible consolidation path is one or two more PE platforms building against Amconex over the next three years, and Amconex itself adding two to four bolt-ons. Rationale: the fixed cost of an IEC 62443 secure-development lifecycle and CRA-aligned compliance programme is roughly the same for a €30m starter specialist as for a €300m specialist; consolidation is the only path for the smaller vendors to amortise it.
Motion 4: Chinese vendors buy Western R&D or channel to bypass tariffs
Inovance already runs European R&D (Stuttgart) and manufacturing (Hungary). The next move is smaller, targeted acquisitions of European drive R&D shops, PLC / HMI integrators, regional distributors and adjacent European motor specialists. Midea, through Hiconics, and INVT via its industrial arm are plausible follow-on acquirers. Rationale: bypass Section 301 tariffs and anti-dumping actions by producing under a European brand or acquiring an existing European supply chain, and accelerate localised brand recognition for MV tenders.
Watchlist: the most-actionable candidates over the next 24 to 36 months
| Target | Type | Most likely buyer class | Trigger |
|---|---|---|---|
| Solcon | MV / LV soft-starter specialist | Amconex platform bolt-on (Sun Capital) or Israeli PE exit | Amconex platform-fit; owner liquidity |
| Motortronics | MV soft-starter specialist | Amconex platform or US industrial PE | Oil & gas end-market cycle timing |
| Fairford Electronics | LV soft-starter specialist | Amconex bolt-on or European industrial PE | Owner succession |
| TMEIC | MV drive specialist (Toshiba / Mitsubishi Electric JV) | Global major or Japanese consolidation | Parent portfolio review; capital deployment cycle |
| Regional service networks (MENA, LatAm) | MV service specialists | Global majors (ABB, Siemens, Schneider) | Aftermarket capture programmes |
| Small European drive R&D shops | Point specialists in AFE, regenerative, integrated motor drive | Inovance / Hiconics / Danfoss / ABB | SiC transition; localisation acceleration |
Rows are author's directional analysis, not confirmed transaction pipelines. Actual deals depend on owner willingness, buyer capital availability and geopolitical windows.
17 What to watch, 2026 to 2028
| Signal | Timing | Beneficiary | Implication |
|---|---|---|---|
| EU CRA full obligations enter into force | Dec 2027 | Majors, well-funded specialists | Compliance floor for covered products. Vendors without credible secure-development and vulnerability-management evidence face a growing procurement disadvantage in European infrastructure tenders. |
| Inovance European market share in LV drives | Rolling 4-quarter view through 2028 | Inovance (if it moves), Danfoss and Siemens if it stalls | A useful read on whether a Chinese challenger can win Europe on channel and quality, with price as a secondary factor. |
| Chinese CHB MV wins in Middle East megaprojects | 2026 to 2028 project awards (NEOM, ADNOC IPPs, Egyptian pumping) | INVT, Hiconics, Rongxin if awards land; ABB, Siemens, TMEIC if they do not | The MV export battleground. |
| Integrated motor drive adoption in HVAC and pumping | Rolling through 2028 | Motor + drive package OEMs (Nord, ABB, Danfoss) | Panel-builder channel loses MCC content as drives move onto the motor. |
| Consolidation among the soft-starter specialists | 2026 to 2027 | Financial and strategic acquirers | Amconex, Solcon, Motortronics and Fairford are plausible platform or bolt-on candidates. |
| SiC adoption in LV drive volume products | 2027 to 2028 | Vendors with NEV cross-platform (Inovance) and dedicated SiC drive lines (Yaskawa, Danfoss, Siemens) | Vendors without SiC roadmap concede the compact / high-density segment. |
| Middle East pumping and desalination capex cycle | 2026 to 2028 orders | Danfoss, ABB, Solcon, Amconex | Water is the largest LV drive vertical and the Middle East is a leading geography for the next tender wave. |
18 FAQ
How large is the total motor-control addressable market and how fast is it growing?
Roughly US$23bn in 2025 across LV drives (~US$16.5bn), MV drives (~US$4.5bn) and soft starters (~US$2.4bn). Growth is around 5% a year with MV slightly ahead of LV and soft starters flat to just under that pace. Energy-efficiency regulation and process-heat electrification are the durable drivers.
Who leads global LV drives?
ABB (~17%), Siemens (~12%) and Danfoss (~10%) are the top three globally. Inovance is #1 within China at roughly a fifth of the domestic market but low single digits outside. Rockwell dominates North American MCC-packaged drives; Schneider dominates the Francophone and Iberian markets and holds a large share in HVAC.
Who leads global MV drives?
ABB and Siemens together appear to account for around a quarter of global MV drive value on the triangulated base case; TMEIC, GE Vernova, Rockwell (via PowerFlex 7000) and Toshiba pick up much of the balance in North America, Europe and Middle East projects. In China, Leader & Harvest (Schneider), Hiconics (Midea), Rongxin and INVT together dominate; the 2024 China MV localisation rate was 56% per INVT's disclosure.
How different are cascaded H-bridge and NPC / ANPC MV drives?
CHB is modular, has better input and output power quality out of the box, and uses standard 1,700 V IGBTs; the transformer is large and heavy. NPC / ANPC is more compact, uses HV IGCTs or HV-IGBTs, is easier to make regenerative with an AFE, and needs output filtering. CHB dominates 3.3 to 11 kV general process; NPC / ANPC dominates high-dynamic, regenerative or space-constrained applications (marine, mine hoists, test benches).
Are soft starters going obsolete?
No. LV soft starters are being pushed out of applications with speed-control payback and backfilled by fixed-speed pumping, chillers and generator auxiliaries. MV soft starters face pressure from start drives on large multi-motor plants but hold the ground where fixed-speed operation is the requirement. The category grows at roughly 5%, matching the broader market.
Where does silicon carbide matter first in industrial drives?
In compact and integrated motor drives, where higher switching frequency and smaller filters translate into a smaller footprint that fits close to or on the motor. Volume LV cabinet drives will follow once SiC device pricing crosses parity with equivalent IGBT power stages. Inovance has the strongest structural cost position because it can amortise SiC learning across NEV powertrain volumes.
How does the EU Cyber Resilience Act change vendor economics?
It imposes cybersecurity and vulnerability-management requirements on covered products with digital elements from December 2027. Secure-development practices such as IEC 62443-4-1 alignment, SBOM (software bill of materials) processes, PSIRT (product security incident response team) capability and coordinated vulnerability disclosure can provide evidence of compliance maturity, but the CRA does not itself mandate IEC 62443-4-1 certification. The fixed cost of compliance runs into the millions of euros per year for a specialist vendor, which shifts the economic case toward scale players and away from small independent drive builders.
What does "aftermarket capture" mean for MV drives and why does it matter?
An MV drive typically operates for 15 to 25 years. Over that life, spare cells, cooling upgrades, control-card retrofits, remote diagnostics contracts and preventive-maintenance visits can generate two to three times the original equipment revenue at higher gross margin. The vendors that have systematically converted install-base to service contracts (ABB, Siemens) run structurally more profitable MV businesses than those that sell hardware and hand off service to a third party.
19 Sources and method
Method. Market sizes are triangulated medians of published reports adjusted for definition. Regional splits and company shares are analyst estimates cross-checked against MIR China rankings, company segment disclosures and top-N concentration ratios from Global Market Insights, Mordor Intelligence and Fortune Business Insights. Company financials come from annual reports and results summaries. Currency: RMB not converted unless stated. All share figures are directional estimates for market positioning; readers should not treat them as investment data.
- INVT 2025 annual report summary (cninfo)
- INVT corporate introduction
- INVT 10,000th MV drive milestone
- Inovance FY2025 results summary (Quartr)
- Inovance Europe footprint case studies
- MIR 2024 China LV / MV drive rankings (subscription-only; referenced through public disclosures by INVT 2025 annual report and Inovance 2024 investor materials)
- Danfoss VACON 3000 and Medium Voltage Drives portfolio
- Danfoss VACON 1000 MV drive introduction (2021)
- Schneider Electric 2011 annual report (Leader Harvest acquisition)
- EU Cyber Resilience Act (Regulation 2024/2847, obligations from 11 December 2027)
- ABB ACS 5000 MV drive product page
- Siemens SINAMICS Perfect Harmony GH180 press release
- IEA 4E Programme (electric motor systems benchmarking)
- Global Market Insights: LV AC drives
- Insight Partners: LV AC drives
- Persistence: MV drives
- Fortune Business Insights: MV drives
- IMARC: soft starters
- Mordor Intelligence: soft starters
- ABB Motion drives portfolio
- Siemens SINAMICS / Perfect Harmony portfolio
- Danfoss VLT and VACON drives portfolio
- Schneider Electric Altivar drives portfolio
- Rockwell PowerFlex drives portfolio
- Amconex Group formation (Feb 2026)
